MXUS Electric Bike Conversion Kit Wheel Hub Motor 36V 48V 1000W 500W 250W 26 28 700C Rear Front Drive Engine eBike Kit XF07 XF08 XF08C XF15F XF15R

Price:
USD
$176.00
    Please select the information you wantX
  • Model+Voltage Power+Rim size:
    XF07 Front 36V 250W
    XF08 Rear 36V 250W
    XF08C Rear Cassette 36V 250W
    XF15 Front 48V 500W
    XF15 Rear 48V 500W
    XF15C Rear Cassette 48V 500W
    XF40 Rear Gearless 48V 1000W
    GDR-19 Rear Gear 48V 1000W
    XF40C Rear Cassette Gearless 48V 1000W
  • Rim size:
    26inch
    700C(28inch)
  • Ships From:
    Germany
    China
Quantity:
-
+
(27 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from

free shipping:price include delivery fee
From Pswpower


If you from follow country,and choose ship from Germany warehouse. free shipping,NO taxes,Taxes is paid by us, also we will send it by DHL with tracking number,delivery time about 4-6 working day.
Belgium, Luxembourg, Slovakia, Czech, Hungary, Austria, Netherlands, Denmark, France, Germany,lreland, Italy, Poland, Slovenia, Spain, Finland, Latvia, Lithuania, Sweden, Bulgaria, Estonia, Portugal, Romania,Croatia
Follow country need add US$15
Iceland,Greece,Switzerland
Follow country need add US$25
Norway
If you from Norway or Switzerland,we will declare value US$65 for motor,you should pay second time taxes.
If you from United Kingdom.you can choose ship from Germany warehouse. we will declare value motor US$65, Import tax 2%.

MXUS Electric Bike Conversion Kit Wheel Hub Motor 36V 48V 1000W 500W 250W  26 28 700C Rear Front Drive Engine  eBike Kit XF07 XF08 XF08C  XF15F XF15R

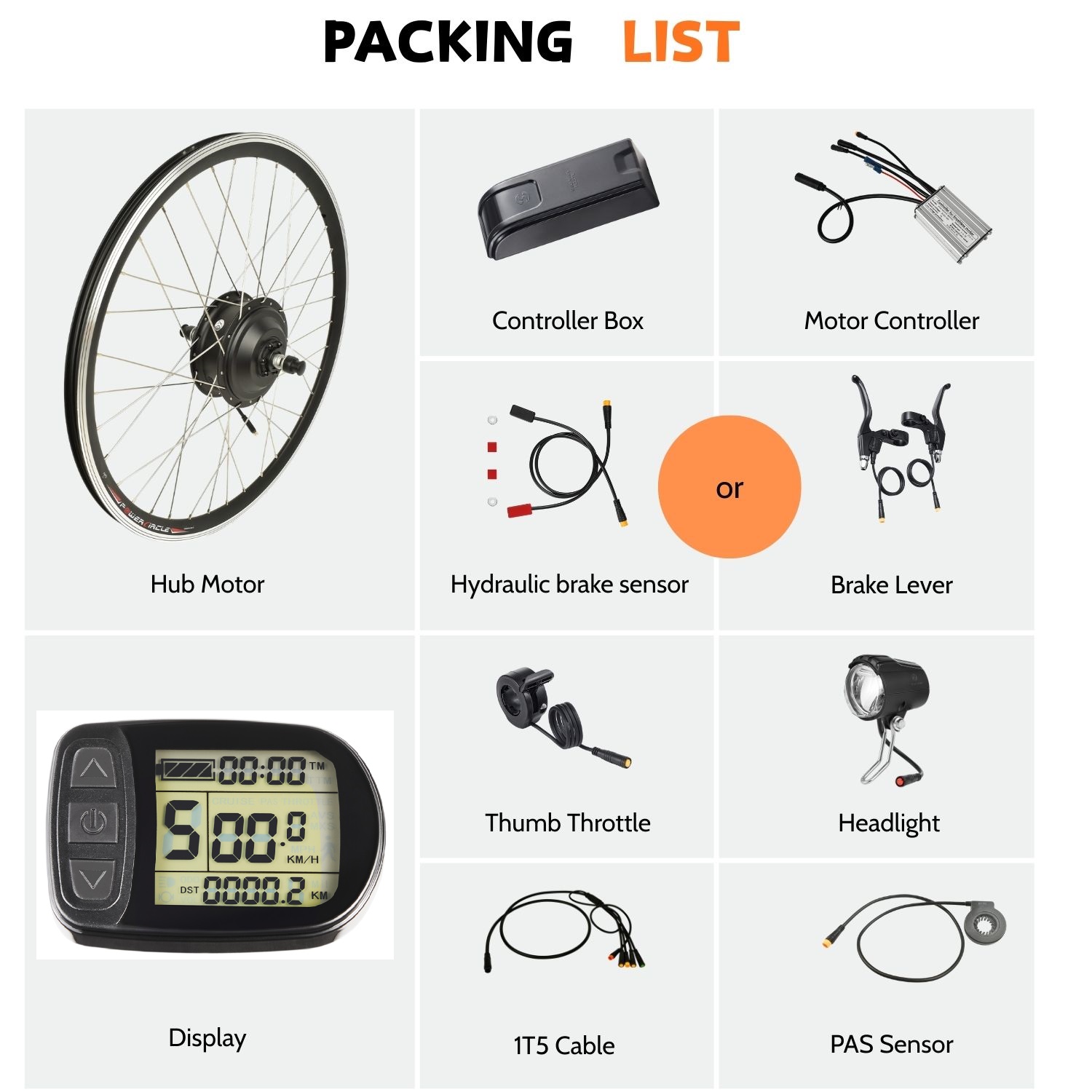

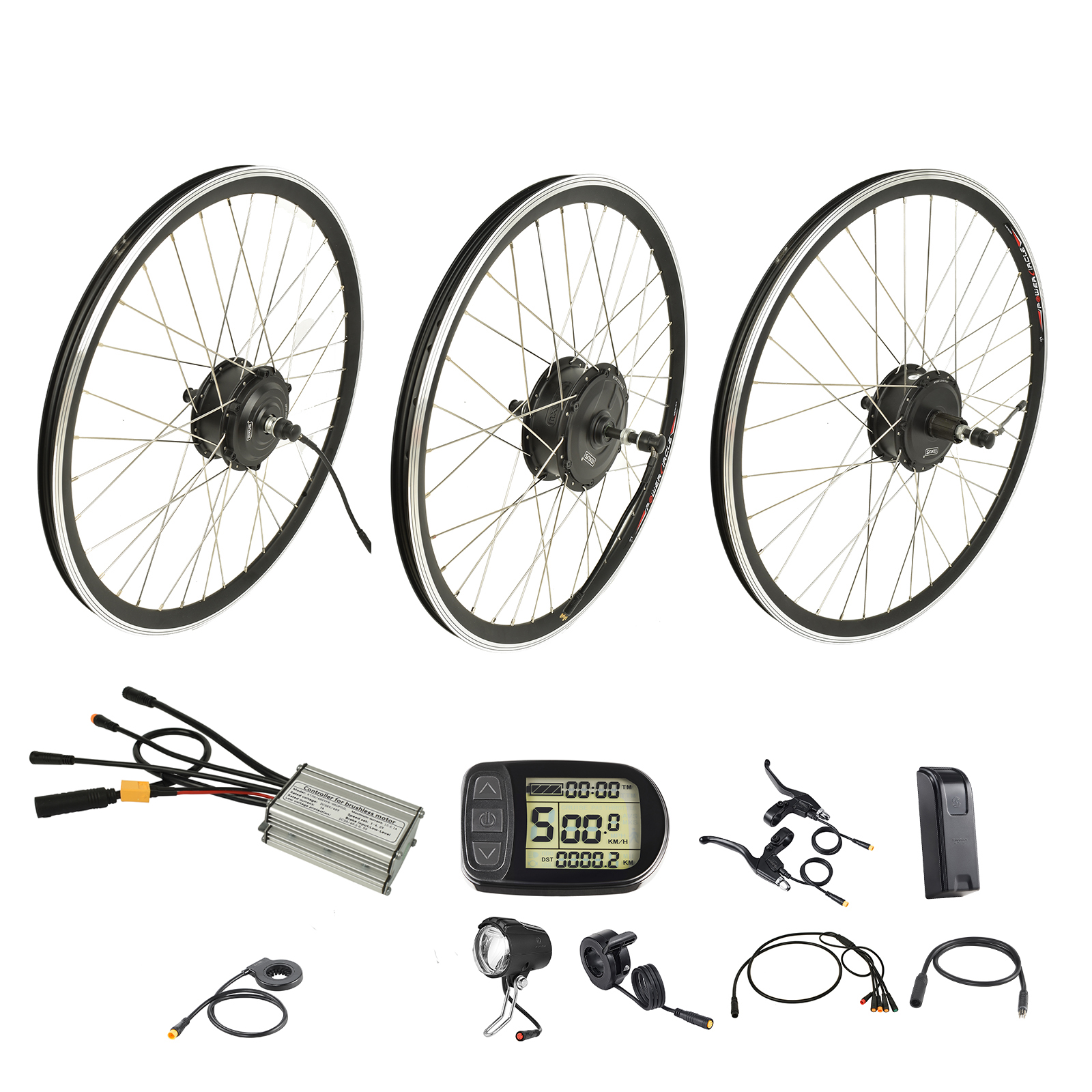

Package include:
1.Hand built double walled rim complete with 13G spokes
26 inch outer diameter 572MM. inner diameter 512MM
28 inch and 700C outer diameter 634.5MM. inner diameter 574.5MM

2.KT kunteng Sine Wave Controller

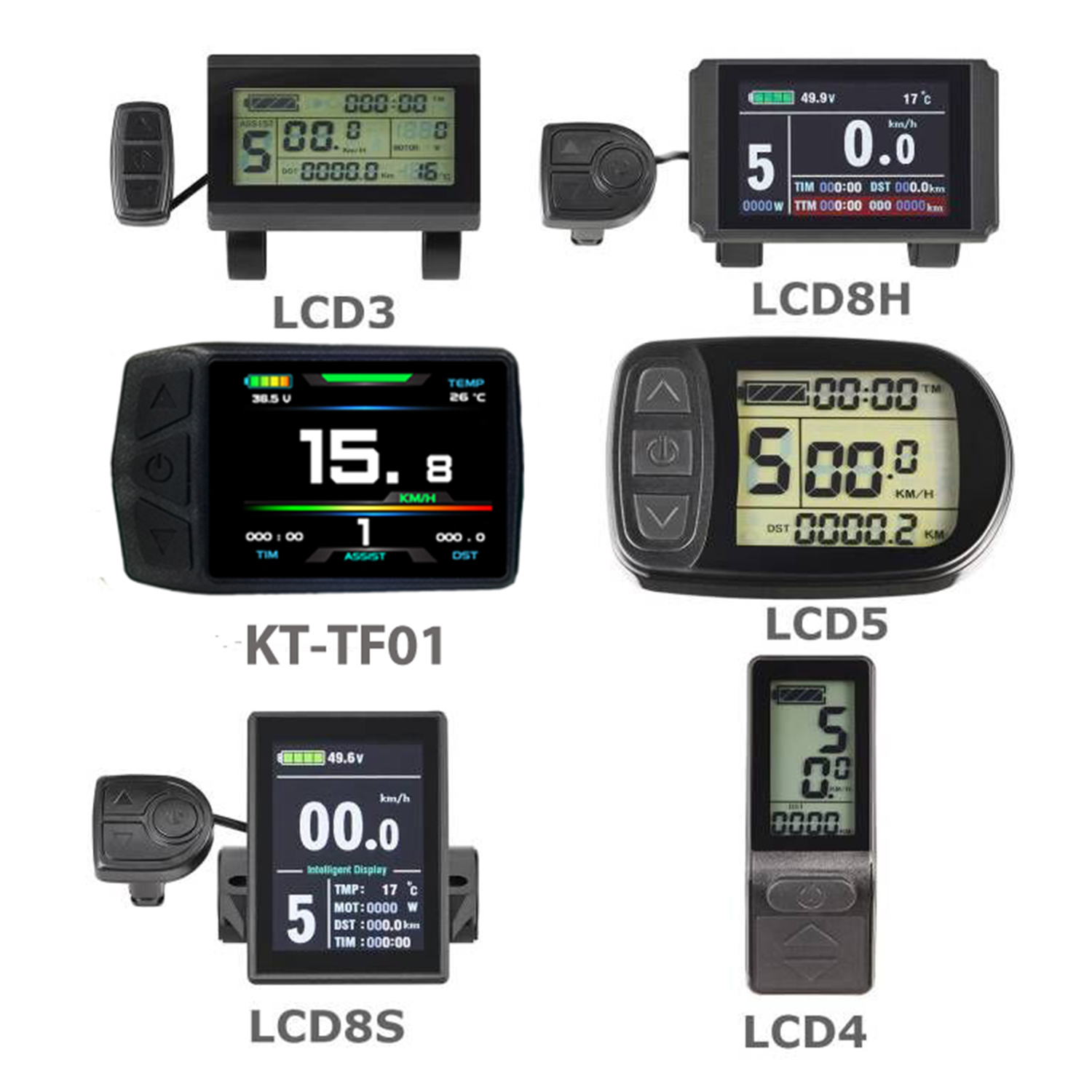

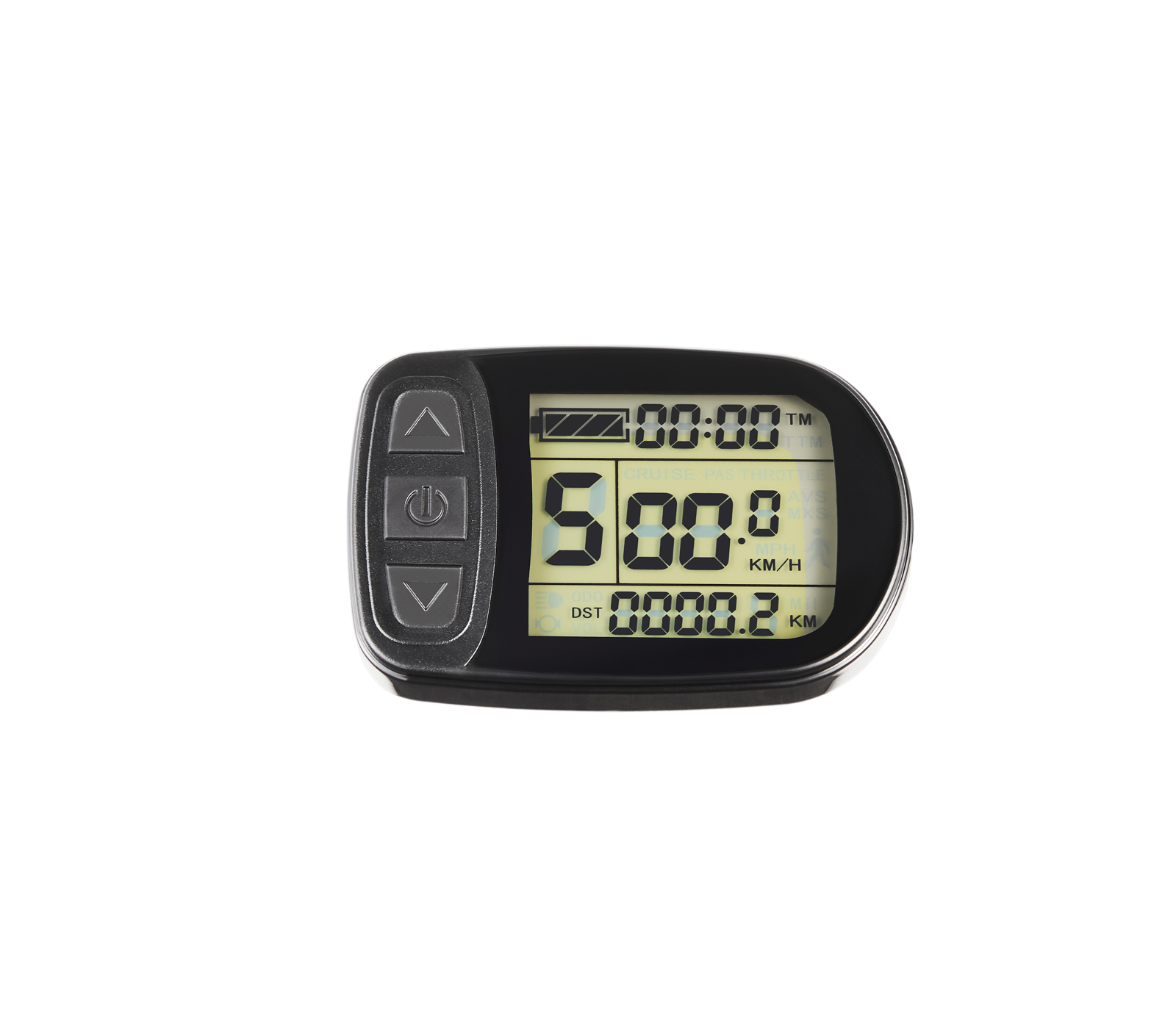

3.LCD: KT-LCD5,fits all KT(kunteng) series LCD,Note the connector
4.Wuxing Brand Throttle
5.Wuxing Brand Brake Lever,Fits bafang oil Hydraulic Brake Sensor(Not included)
6.PAS: Dual Hall Sensor
7.Wuxing Brand front LED light
8.Controller case

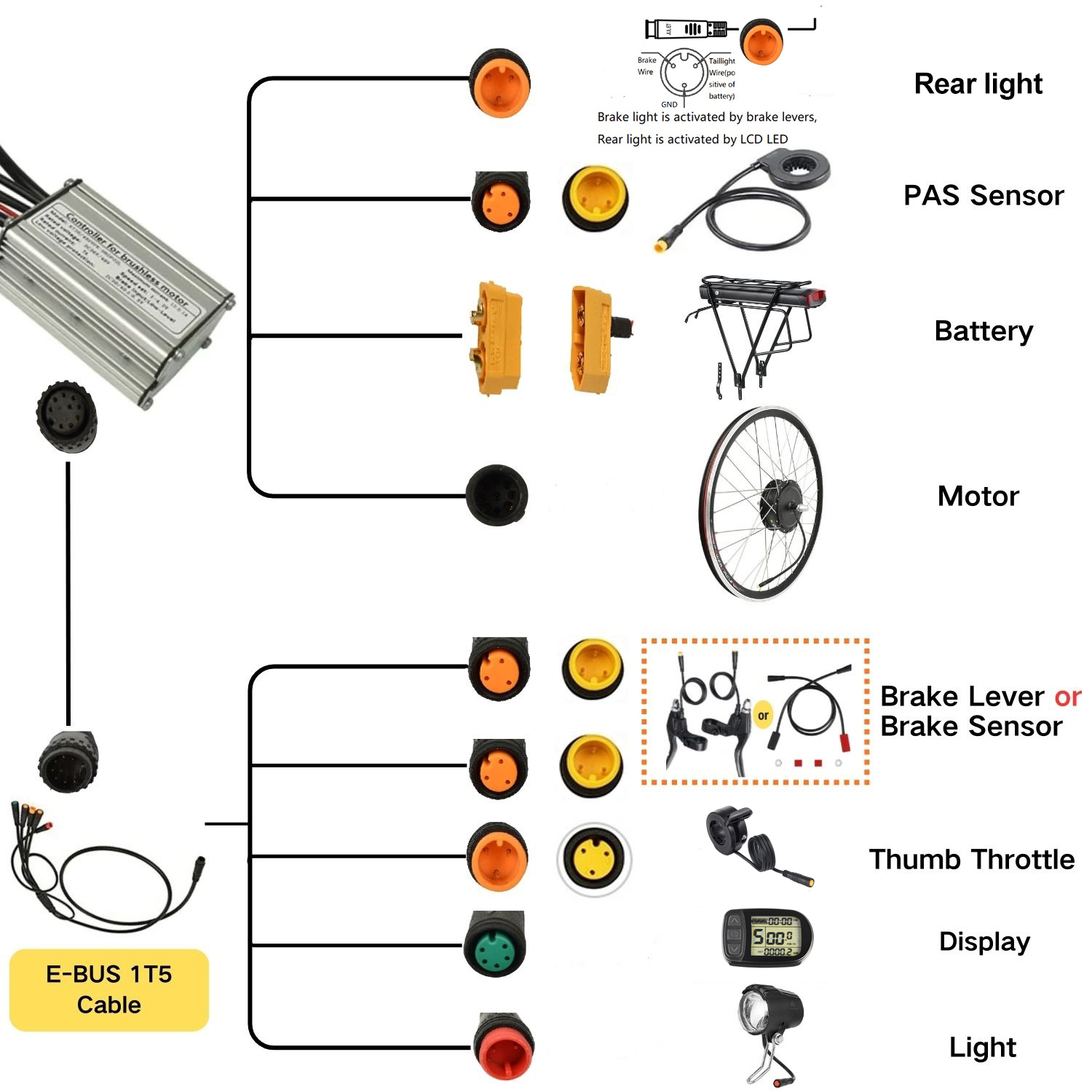

9. 1 to 5 cable
1000W motor include 1pcs electric bike torque arm Dropout Amplifier


XF07 Front Motor
Construction                          Gear
Weight(Kg)                            2.8
Rated Speed(km/h)             RPM 270

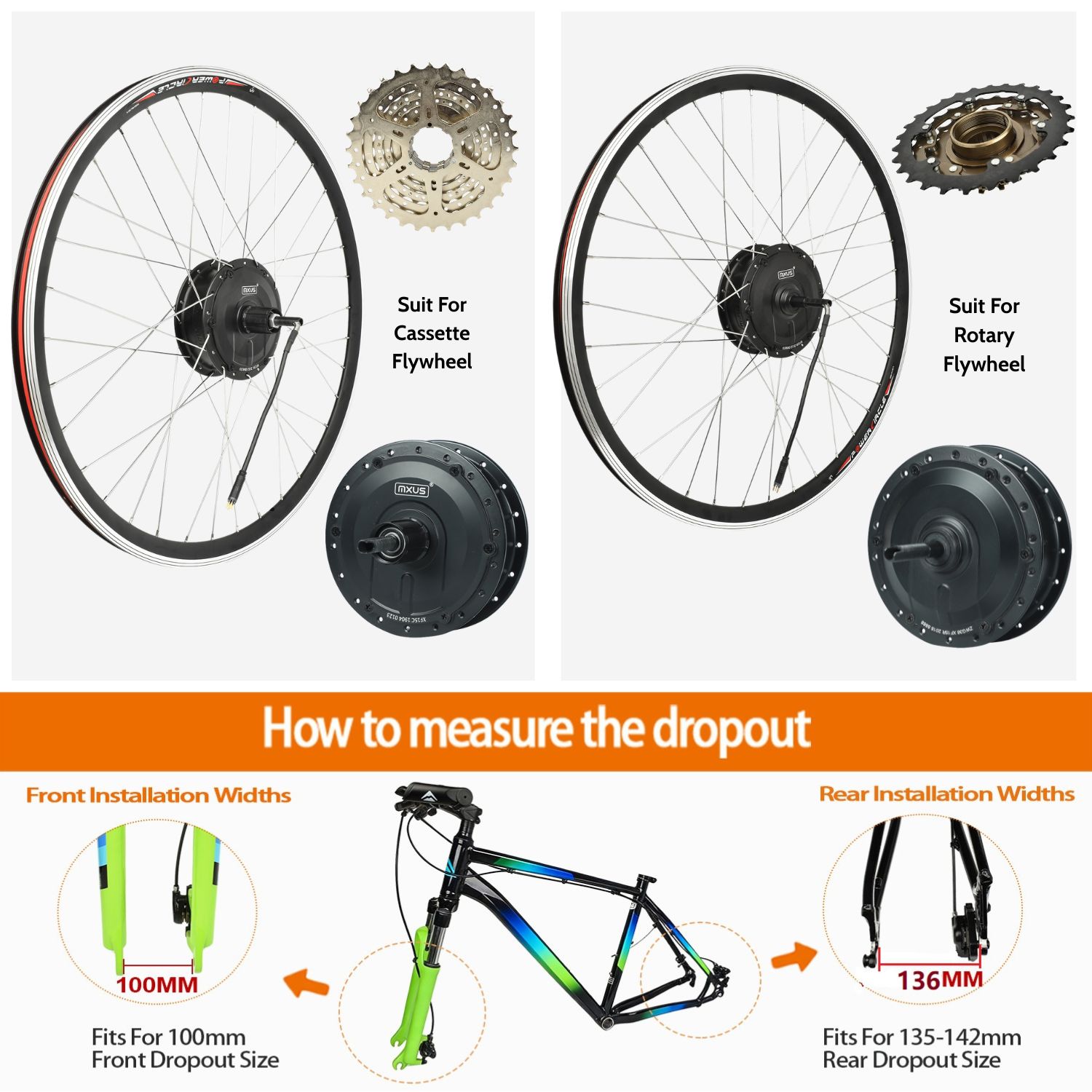

Fork size (Dropout Size)         100mm
Brake Type                    V/Disk brake
XF08 Rear Freewheel Motor
Construction                          Gear
Weight(Kg)                                  2.8
Rated Speed(km/h)             RPM 270
Fork size (Dropout Size)          135mm
Freewheel                               6s-9s
Brake Type                    V/Disk brake
XF08C Rear Cassette Motor
Construction                          Gear
Weight(Kg)                             3
Rated Speed(km/h)             RPM 270
Fork size (Dropout Size)         142mm
Freewheel   8s-10s cassette freewheel
Brake Type                    V/Disk brake


XF15 Front Motor
Construction                            Gear
Weight(Kg)                                3.7
Rated Speed(km/h)             RPM 380
Fork size (Dropout Size)         100mm
Brake Type                    V/Disk brake
XF15 Rear Freewheel Motor
Construction                           Gear
Weight(Kg)                                 3.7
Rated Speed(km/h)          RPM 380
Fork size (Dropout Size)          139mm
Freewheel                               6s-9s
Brake Type                    V/Disk brake
XF15C Rear Cassette Freewheel Motor
Construction                          Gear
Weight(Kg)                                3.9
Rated Speed(km/h)            RPM 380
Fork size (Dropout Size)         145mm
Freewheel   8s-10s cassette freewheel
Brake Type                    V/Disk brake


XF40C Rear cassette Freewheel Gearless Motor:
Construction                           Gearless
Weight(Kg)                                 6
Rated Speed(km/h)          RPM 500
Fork size (Dropout Size)          136mm
Freewheel                   8s-10s cassette Freewheel
Brake Type                    V/Disk brake

XF40 Rear Freewheel Gearless Motor:
Construction                           Gearless
Weight(Kg)                                 6
Rated Speed(km/h)         RPM 500
Fork size (Dropout Size)          135mm
Freewheel                   6s-7s
Brake Type                    V/Disk brake


GDR-19 Rear Freewheel Motor:
Construction   Gear
Weight(kg)       5
Rated speed(km/h) 25-45
Fork size (Dropout Size)  140mm

Freewheel       7s
Brake Type       V/Disk brake


Motor Cable: Front motor with total 1.5M 9 PIN Waterproof cable,Rear Freewheel​ and Rear Cassette Freewheel motor with total 1M 9 PIN Waterproof cable.

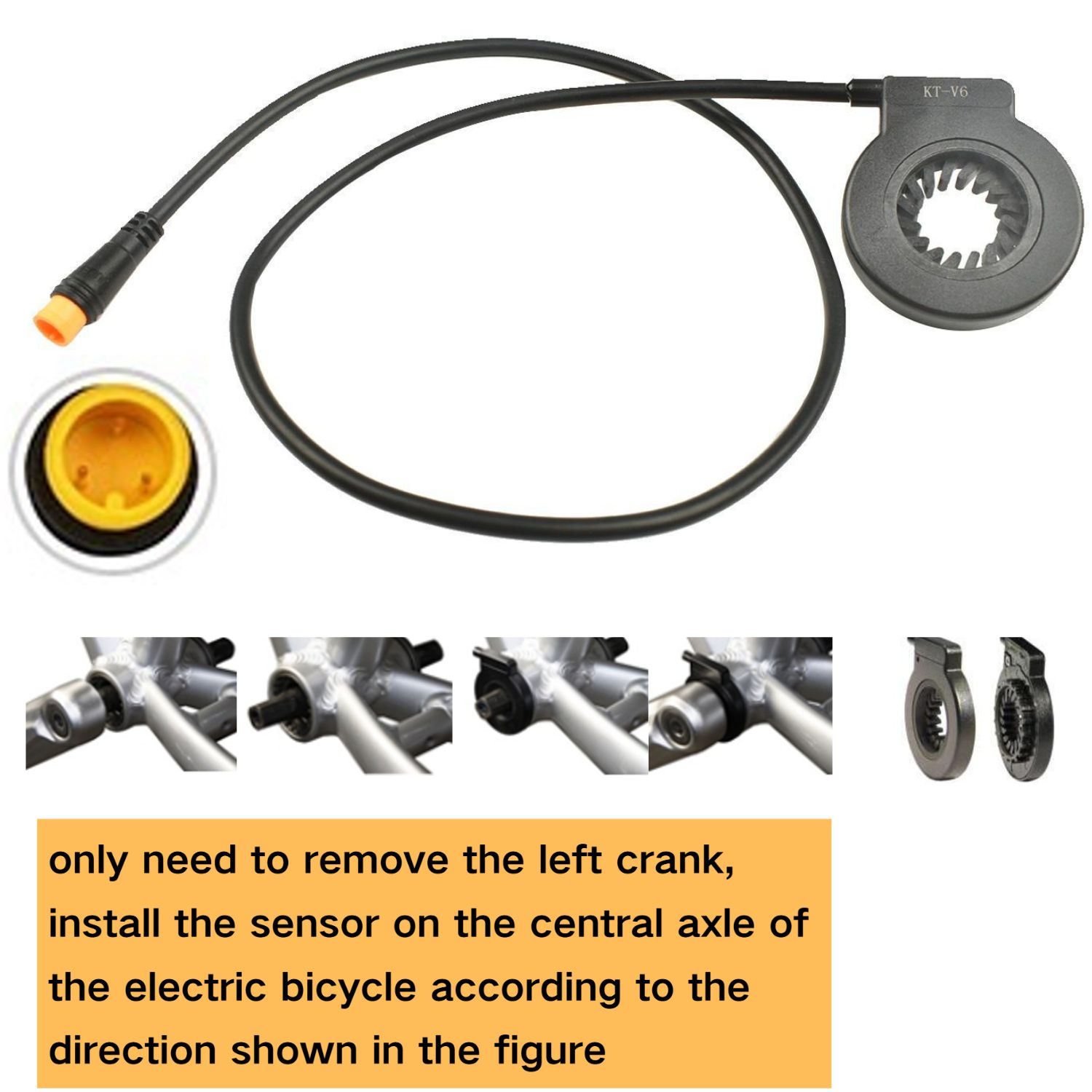

there is one Left PAS Sensor, you must install the PAS same as the photos

Pay attention to the positive and negative poles,If the installation is wrong,Controller will be burned, No warranty for this way

Model Torque: NM
XF40 48V 1000W 70
XF07 36V250W 35
XF08 36V250W 35
XF15F 48V500W 65
XF15R 48V500W 65
XF15C 48V500W 65
XF40C 48V 1000W 70
XF19R 48V 1000W 100
XF15F 36V350W 50
XF15R 36V350W 50
XF08C 36V250W 35

























Warranty:
1 year (based on the purchase data): Free repair,buyer pay for return postage,
 resend postage free,buyer should return to United Kingdom or France or China for repair.



Payment:

The payment isn't included the remote fee. There will have extra cost if your address is belong to remote areas.



Return & Refund:
After receiving the item,buyer should start a return within 7 days.Return postage will be paid by buyer.The return items must be in original conditions never used.Buyer can not return to sender address,we will provide local return address to buyer.
